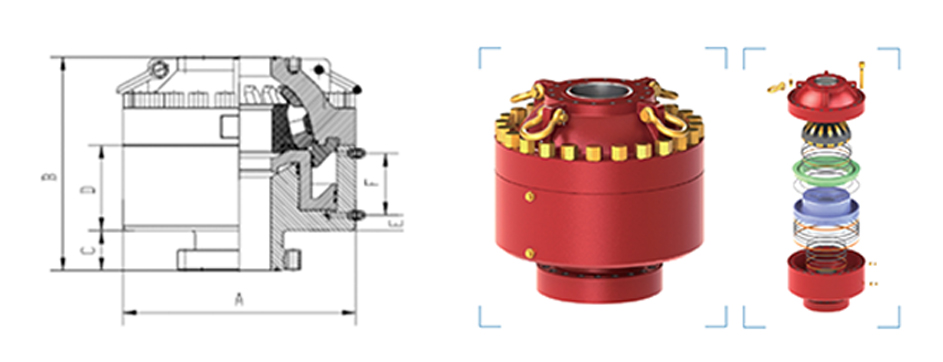

The spherical blowout preventer consists of five main components: housing, piston, support ring, spherical rubber element, and top cover. All dynamic seals of the annular blowout preventer use lip-type sealing rings, which minimize wear and ensure reliable sealing. The rubber element is resistant to turning over, features a funnel effect, and benefits from well pressure-assisted sealing.
Designation
Throat Diameter mm (inch)
Working Pressure MPa (PSI)
Oil Volume, L - Control Fluid Volume
Outer Diameter (D), mm
Height (H), mm
Weight kg
Volume for Closing
Volume for Opening
ПУГ-180х21
180 (7.1/16)
21 (3000)
20
13
705
740
1400
ПУГ-180х35
35 (5000)
21
15
745
797
1500
ПУГ-180х35/70
35 /70(5000/10000)
21
15
745
817
1550
ПУГ-230х21
230 (9)
21 (3000)
28.6
19.6
902
826
1980
ПУГ-230х35
35 (5000)
42
33
1016
942
3050
ПУГ-230х35/70
35 (5000)
42
33
1016
982
3120
ПУГ-280х21
280 (11)
21 (3000)
46
33
1013
873
3200
ПУГ-280х35
35 (5000)
76
60
1146
1100
4450
ПУГ-280х35/70
35/70 (5000/10000)
76
60
1146
1160
4520
ПУГ-350х21
350 (13.5/8)
21 (3000)
98
72
1271
1105
5710
ПУГ-350х35
35 (5000)
96
72
1271
1176
6454
ПУГ-350х35/70
35/70 (5000/10000)
96
72
1271
1231
6745
ПУГ-480х35
480 (18 3/4)
35 (5000)
220
172
1780
1558
16330
ПУГ-530х21
530 (20 3/4)
21 (3000)
173
110
1375
1293
7400
ПУГ-760х7
760 (30)
7 (1000)
495
211
1811
1788
14300
