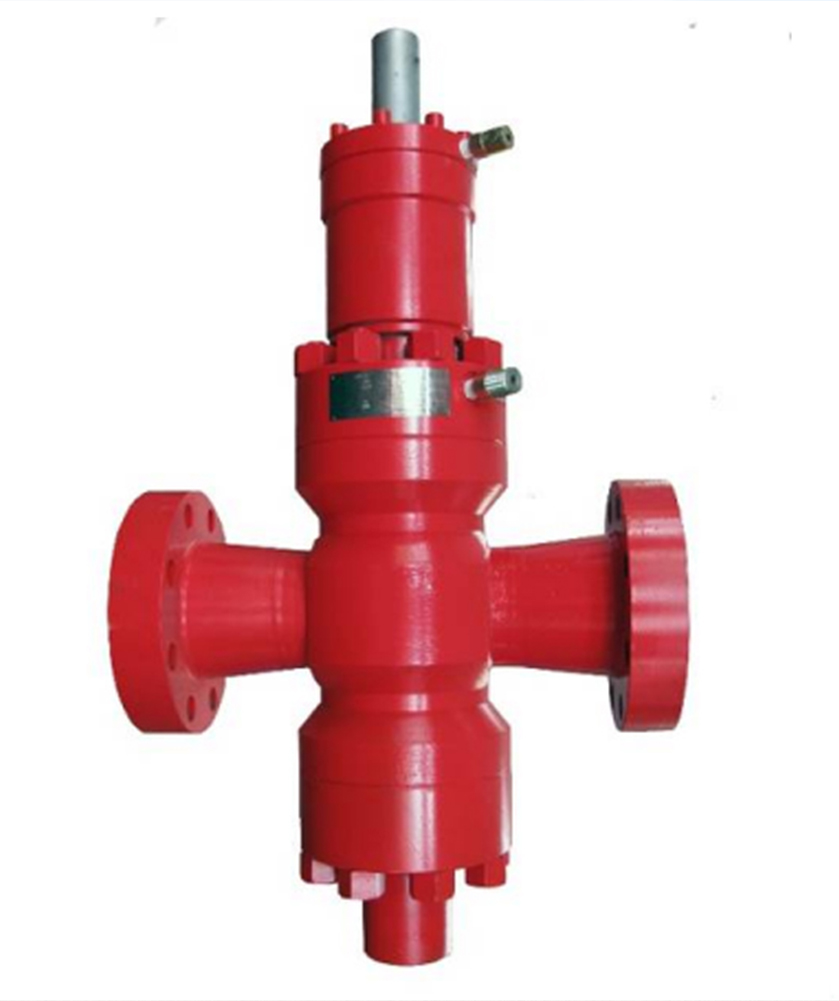

The hydraulically actuated parallel gate valve is developed by integrating hydraulic drive technology into manual flat gate valves. It features sulfur-resistant and corrosion-resistant properties, making it suitable for use as a component in oil and gas wellhead equipment and various manifolds. This valve can be remotely operated via the driller's console.
Model
Throat Diameter (mm)
Working Pressure MPa (PSI)
Grade
Control Fluid Volume (L)
Dimensions mm
Weight (kg)
PFFY65-35
65.1
35
EE PR1 PSL3
2.1
1000*380*700
228
PFFY65-70
65.1
70
EE PR1 PSL3
2.1
1000*380*700
238
PFFY79-35
79.4
35
EE PR1 PSL3
3.2
1000*420*800
245
PFFY78-70
77.8
70
EE PR1 PSL3
3.2
1000*420*800
265
PFFY103-35
103.2
35
EE PR1 PSL3
4.1
1200*450*800
345
PFFY103-70
103.2
70
EE PR1 PSL3
4.1
1200*450*800
368
