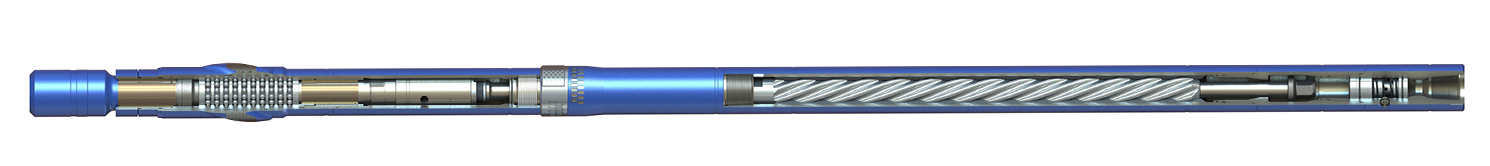

Progressive cavity drills can be used in conjunction with roller cone bits, diamond bits, and other special bits for drilling operations in vertical wells, directional wells, and horizontal wellbores.
|
Model |
OD mm |
Bit Size (mm) |
Connection Thread |
Number of Lobes |
Number of Stages |
Recommended Flow Rate (L/s) |
Bit Rotational Speed (rpm) |
Motor Pressure Difference (MPa) |
Output Torque (N·m) |
Maximum Pressure Difference (MPa) |
Maximum Torque (N·m) |
Working Weight on Bit (kN) |
Maximum Weight on Bit (kN) |
Output Power (kW) |
Total Length (mm) |
|
|
|
|
|
Upper End |
Lower End |
|
|
|
|
|
|
|
|
|
|
|
|
|
5LZ38x7.0-4-360 |
39 |
43～60 |
1AMMT |
1AMMT |
5：6 |
4 |
0.5～1.0 |
152～304 |
3.2 |
81 |
4.8 |
122 |
2 |
3 |
2.6 |
2186 |
|
5LZ45x7.0-4-420 |
46 |
48～76 |
1AMMT |
1AMMT |
5：6 |
4 |
1.0～1.5 |
173～347 |
3.2 |
143 |
4.8 |
214 |
3 |
5 |
3.9 |
2579 |
|
5LZ54x7.0-4-420 |
54 |
60～89 |
11/2REG |
11/2REG |
5：6 |
4 |
1.5～3.0 |
170～340 |
3.2 |
218 |
4.8 |
328 |
4 |
7 |
7.8 |
2604 |
|
5LZ57x7.0-3-600 |
57 |
65～89 |
11/2REG |
11/2REG |
5：6 |
3 |
2.5～5.0 |
180～360 |
2.4 |
256 |
3.2 |
342 |
4 |
7 |
9.7 |
2783 |
|
5LZ60x7.0-4-420 |
60 |
73～95 |
11/2REG |
11/2REG |
5：6 |
4 |
2.0～4.0 |
179～359 |
3.2 |
276 |
4.8 |
414 |
5 |
8 |
10.4 |
2627 |
|
5LZ65x7.0-4-480 |
65 |
79～102 |
11/2REG |
11/2REG |
5：6 |
4 |
3.0～6.0 |
190～380 |
3.2 |
388 |
4.8 |
582 |
8 |
16 |
10.4 |
3130 |
|
5LZ73x7.0-3-600 |
75 |
89～121 |
23/8REG |
23/8REG |
5：6 |
3 |
3.0～6.0 |
126～253 |
2.4 |
440 |
3.6 |
660 |
12 |
20 |
11.7 |
3330 |
|
7LZ73x7.0-4-480 |
76 |
89～121 |
23/8REG |
23/8REG |
7：8 |
4 |
4.0～7.0 |
185～324 |
3.2 |
534 |
4.8 |
801 |
12 |
20 |
18.1 |
3430 |
|
7LZ73x7.0-5-600 |
76 |
89～121 |
23/8REG |
23/8REG |
7：8 |
5 |
4.0～7.0 |
152～266 |
4.0 |
813 |
6.0 |
1220 |
12 |
20 |
25 |
4530 |
|
7LZ79x7.0-4-640 |
79 |
95～121 |
23/8REG |
23/8REG |
7：8 |
4 |
6.0～9.0 |
170～256 |
4.0 |
1087 |
6.0 |
1630 |
12 |
20 |
32 |
4091 |
|
7LZ79x7.0-2-480 |
80 |
95～121 |
NC26 |
23/8REG |
7：8 |
2 |
5.0～7.0 |
190～265 |
2.5 |
509 |
3.75 |
764 |
12 |
20 |
16 |
2275 |
|
7LZ89x7.0-3-600 |
89 |
107～121 |
27/8REG |
27/8REG |
7：8 |
3 |
6.0～9.0 |
157～235 |
2.4 |
709 |
3.6 |
1064 |
22 |
35 |
23.3 |
3755 |
|
7LZ89x7.0-4-640 |
89 |
107～121 |
27/8REG |
27/8REG |
7：8 |
4 |
6.0～9.0 |
124～187 |
3.2 |
1190 |
4.8 |
1785 |
22 |
35 |
23.3 |
4515 |
|
7LZ89x7.0-5-640 |
89 |
107～121 |
27/8REG |
27/8REG |
7：8 |
5 |
6.0～9.0 |
124～187 |
4.0 |
1487 |
6.0 |
2231 |
22 |
35 |
29.2 |
5155 |
|
7LZ95x7.0-3-600 |
95 |
118～149 |
27/8REG |
27/8REG |
7：8 |
3 |
6.0～12 |
114～228 |
2.4 |
975 |
3.6 |
1463 |
30 |
55 |
25 |
3683 |
|
7LZ95x7.0-5-560 |
95 |
118～149 |
27/8REG |
27/8REG |
7：8 |
5 |
6.0～12 |
114～228 |
4.0 |
1625 |
6.0 |
2438 |
30 |
55 |
35 |
4683 |
|
7LZ102x7.0-4-520 |
102 |
118～152 |
27/8REG |
27/8REG |
7：8 |
4 |
6.0～12 |
128～256 |
3.2 |
1159 |
4.8 |
1738 |
30 |
55 |
31 |
4310 |
|
7LZ102x7.0-4-720 |
102 |
118～152 |
27/8REG |
27/8REG |
7：8 |
4 |
7.0～15 |
108～231 |
3.2 |
1604 |
4.8 |
2406 |
30 |
55 |
38.9 |
5110 |
|
5LZ120x7.0-4-720 |
120 |
149～200 |
31/2REG |
31/2REG |
5：6 |
4 |
9.0～18 |
118～236 |
3.2 |
1890 |
4.8 |
2835 |
50 |
90 |
46.6 |
5381 |
|
5LZ124x7.0-5-720 |
124 |
149～200 |
31/2REG |
31/2REG |
5：6 |
5 |
9.0～18 |
118～236 |
4.0 |
2362 |
6.0 |
3543 |
50 |
90 |
58.3 |
6101 |
|
7LZ124x7.0-4-820 |
124 |
149～200 |
31/2REG |
31/2REG |
7：8 |
4 |
11～22 |
107～214 |
3.2 |
2543 |
4.8 |
3815 |
50 |
90 |
57 |
5761 |
|
7LZ124x7.0-5-820 |
124 |
149～200 |
31/2REG |
31/2REG |
7：8 |
5 |
11～22 |
107～214 |
4.0 |
3179 |
6.0 |
4769 |
50 |
90 |
71.3 |
6581 |
|
7LZ127x7.0-4-880 |
127 |
149～200 |
31/2REG |
31/2REG |
7：8 |
4 |
11～22 |
99～200 |
3.2 |
2729 |
4.8 |
4094 |
50 |
90 |
69 |
5843 |
|
7LZ146x7.0-5-800 |
146 |
171～222 |
4/2REG |
4/2REG |
7：8 |
5 |
13～26 |
94～188 |
4.0 |
4249 |
6.0 |
6373 |
70 |
130 |
84.2 |
6983 |
|
5LZ165x7.0-5-840 |
165 |
213～251 |
41/2REG |
41/2REG |
5：6 |
5 |
16～32 |
99～198 |
4.0 |
4987 |
6.0 |
7480 |
80 |
160 |
103.7 |
|
|
7LZ165x7.0-5-840 |
165 |
213～251 |
41/2REG |
41/2REG |
7：8 |
5 |
16～32 |
86～172 |
4.0 |
5745 |
6.0 |
8617 |
80 |
160 |
103.7 |
|
|
5LZ172x7.0-5-840 |
175 |
213～251 |
41/2REG |
41/2REG |
5：6 |
5 |
16～32 |
86～172 |
4.0 |
5764 |
6.0 |
8645 |
100 |
170 |
103.7 |
|
|
7LZ172x7.0-5-840 |
175 |
213～251 |
4/2REG |
4/2REG |
7：8 |
5 |
20～32 |
90～145 |
4.0 |
6833 |
6.0 |
10249 |
100 |
170 |
103.7 |
|
|
7LZ172x7.0-5-960 |
175 |
213～251 |
4/2REG |
4/2REG |
7：8 |
5 |
20～32 |
80～127 |
4.0 |
7809 |
6.0 |
11713 |
100 |
170 |
103.7 |
|
|
7LZ178x7.0-6-840 |
178 |
213～251 |
4/2REG |
4/2REG |
7：8 |
6 |
20～32 |
90～145 |
4.8 |
8199 |
6.78 |
11582 |
100 |
170 |
103.7 |
|
|
5LZ203x7.0-5-840 |
203 |
251～311 |
65/8REG |
65/8REG |
5：6 |
5 |
22～40 |
85～156 |
4.0 |
7948 |
6 |
11922 |
155 |
250 |
129.6 |
|
|
7LZ203x7.0-5-840 |
203 |
251～311 |
65/8REG |
65/8REG |
7：8 |
5 |
22～40 |
76～137 |
4.0 |
9004 |
6.0 |
13506 |
155 |
250 |
129.6 |
|
|
7LZ203x7.0-5-1000 |
203 |
251～311 |
65/8REG |
65/8REG |
7：8 |
5 |
22～40 |
63～115 |
4.0 |
10719 |
6.0 |
16079 |
155 |
250 |
129.6 |
|
|
7LZ216x7.0-5-1020 |
216 |
251～311 |
65/8REG |
65/8REG |
7：8 |
5 |
22～40 |
54～97 |
4.0 |
12659 |
6.0 |
18988 |
180 |
300 |
129.6 |
|
