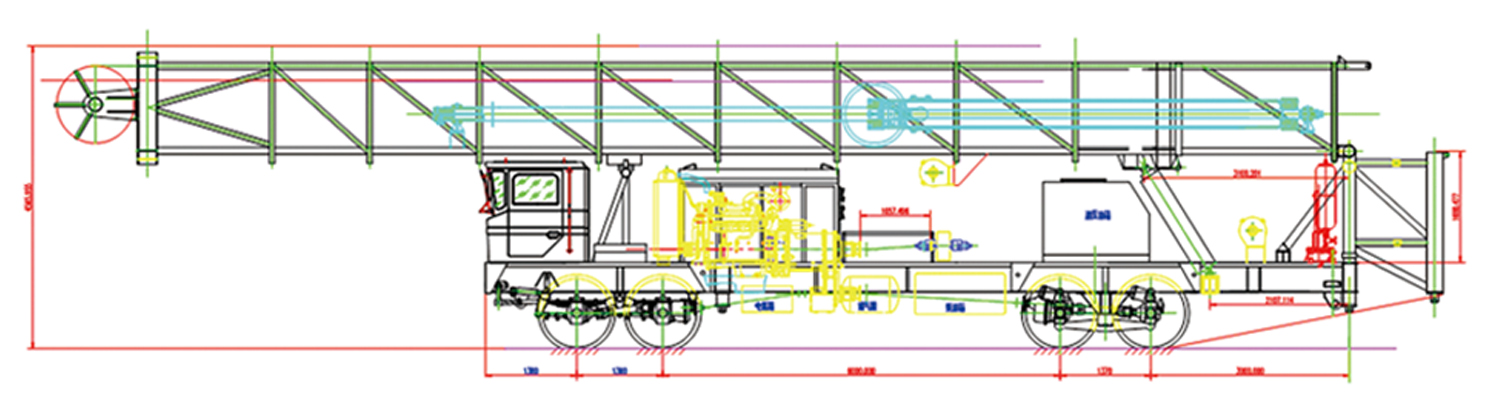

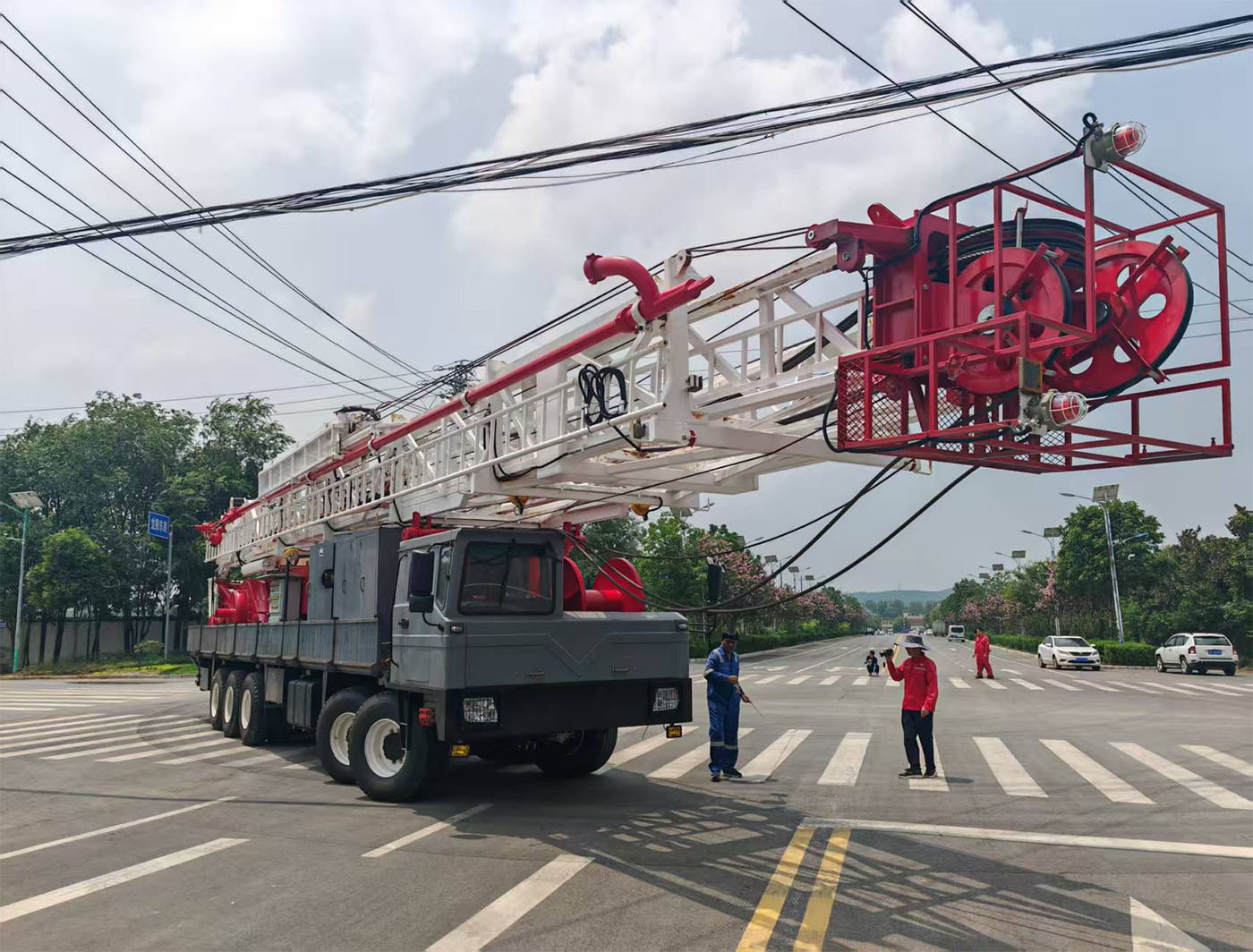

The truck-mounted workover rig is a new type of workover rig with mechanical-hydraulic transmission. The power, winch, derrick, traveling block system and transmission mechanism of the workover rig are all mounted on a self-propelled chassis, which has a great advantage in improving the relocation efficiency of workover operations.The workover depth can cover 2500m~8500m, and the winch power can cover 250hp~1000hp.It features large operating load, reliable performance, strong off-road capability, convenient transportation, and low operation and relocation costs.It can design and develop products with special requirements for alpine, desert, plateau and other regions.
|
Technical Parameters |
XJ350 |
XJ450 |
XJ550 |
XJ650 |
XJ750 |
|
Max Hook Load kN |
900 |
1125 |
1350 |
1470 |
1800 |
|
Rated Hook Load kN |
600 |
800 |
1000 |
1200 |
1500 |
|
Workover Depth (27/8″Tubing) |
4000 |
5500 |
7000 |
7500 |
8000 |
|
Major Repair Depth (27/8″Drill Pipe) |
3200 |
4500 |
5800 |
6500 |
——— |
|
Installed Power kW |
269 |
343 |
391/429 or Electric Drive400 |
485 or Electric Drive 500 |
343х2 or Electric Drive 600 |
|
Effective Lines |
6 |
8 |
8 |
8 |
10 |
|
Derrick Height m |
29/31.3 |
31.3/32 |
31.7/32/33 |
34/35 |
36/38 |
|
Drive Type |
8х8/10х8 |
10х8 |
10х8 Towable |
12х8 Towable |
14х8 Towable |
|
Wire Rope Diameter |
ф26 |
ф26 |
ф26 |
ф29 |
ф29 |
