Drilling Rig

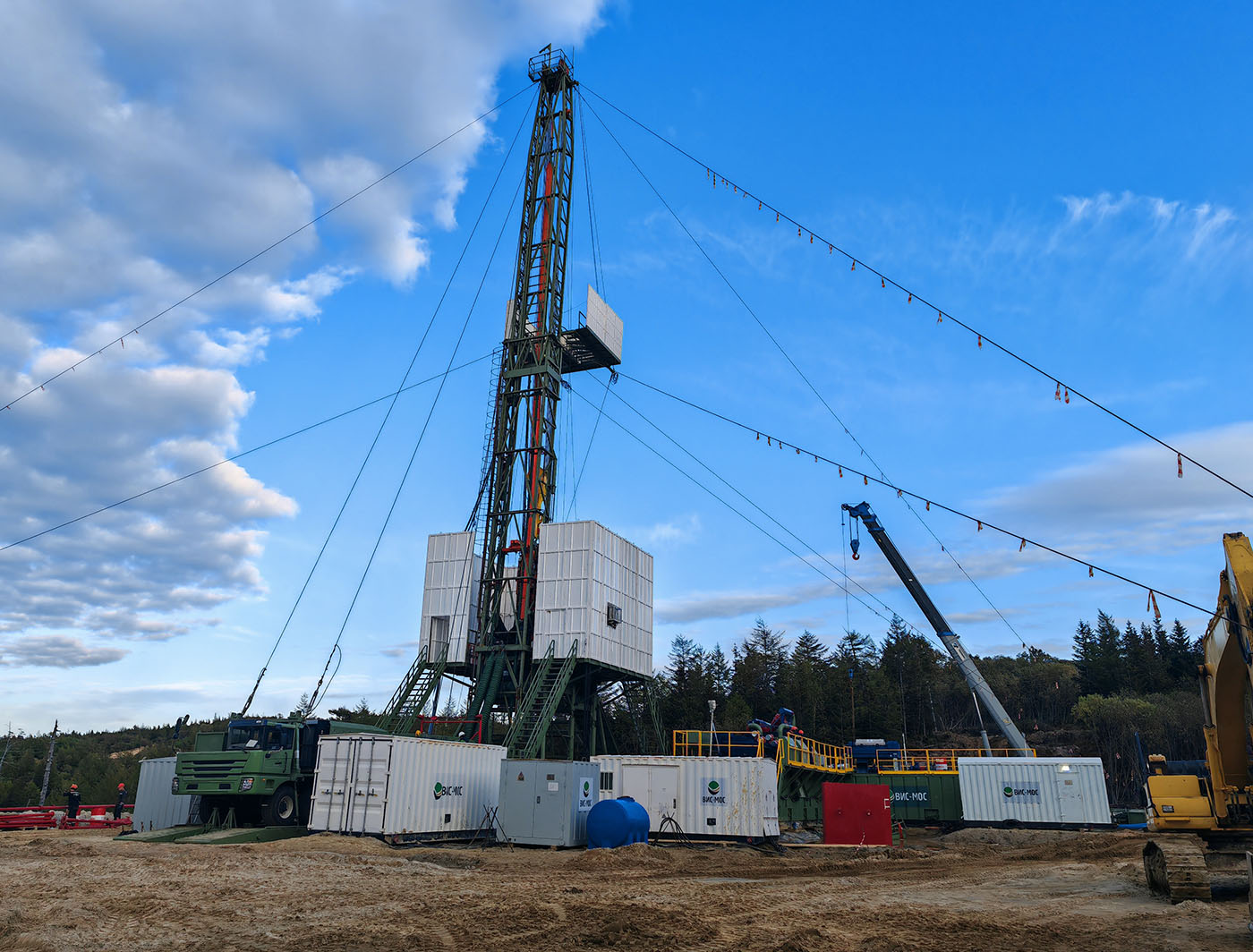

Truck-mounted drilling rig

Drilling Rig - JZ Series

The truck-mounted workover rig integrates components such as the power system, winch, derrick, traveling block system, and transmission system on a self-propelled chassis. The whole machine features a compact structure, high integration, small floor space, fast transportation, and high relocation efficiency.

  • A complete range of product series, with a maximum hook load of 700kN-2500kN.
  • The engine is of well-known brand, meeting the National VI emission standard at the highest level.
  • Adopting hydraulic + mechanical transmission mode, it ensures stable transmission, low impact, and high comprehensive efficiency.
  • Equipped with a self-developed special chassis for oilfields, it has excellent off-road performance, maneuverability, and reliability, suitable for complex road conditions in oilfields.
  • The main brake of the winch can be optional between band brake and hydraulic disc brake; the auxiliary brake can be optional among pneumatic push disc type, pneumatic caliper disc type, and water brake; a sand fishing drum can be optionally equipped. The design and manufacture of winch components comply with API 7K specifications.
  • The derrick is hydraulically raised, lowered, and telescoped, with its design and manufacture complying with API 4F specifications.
  • The floor size and height of the drill floor can be customized according to user requirements.
  • The electrical, pneumatic, and hydraulic systems are centrally controlled, with main components adopting imported well-known brand elements.
  • Products can be customized to meet the requirements of special environments such as alpine regions, deserts, plateaus, and tidal flats


    Technical Parameters

    ZJ20/1580

    ZJ30/1800

    ZJ40/2250

    ZJ40/2500

    Max Hook Load

    1350

    1800

    2250

    2500

    Drilling Depth (with 114 DP )

    2000

    3000

    4000

    4300

    Drawworks Power kw

    500

    750

    1000

    1200

    Max Hook Lifting Speed

    1.31

    1.36

    1.36

    1.36

    Engine Power

    470

    402

    450

    470

    Number of Engines

    1

    2

    2

    2

    Derrick Structural Design

    Telescopic, two - section type

    Derrick Height (m)

    35

    38/39

    38/39

    38/39

    Rig Floor Height (m)

    4.5

    6

    7.2

    7.2

    Transmission Type

    Hydraulic + Mechanical type

    Rope System

    4х5

    5х6

    5х6

    5х6

    Wire Rope Diameter

    ф29

    ф32

    ф32

    ф32

    Traveling Block and Hook Model

    YG150

    YG180

    YG225

    YG250

    Swivel Model

    SL160

    SL225

    SL225

    SL250

    Rotary Table Model

    ZP205

    ZP275

    ZP275

    ZP275

    Transport dimensions

    20.1х3.05х4.49

    23х3.2х4.5

    23х3.2х4.8

    23х3.2х4.8

    Weight

    58000

    76000

    82000

    85000
